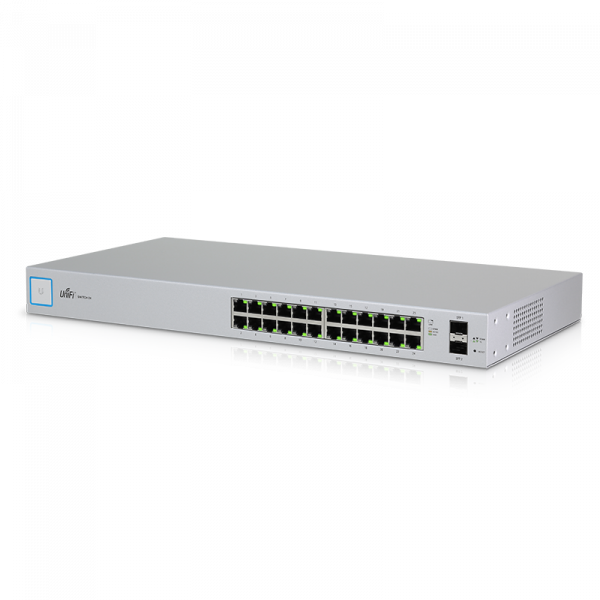

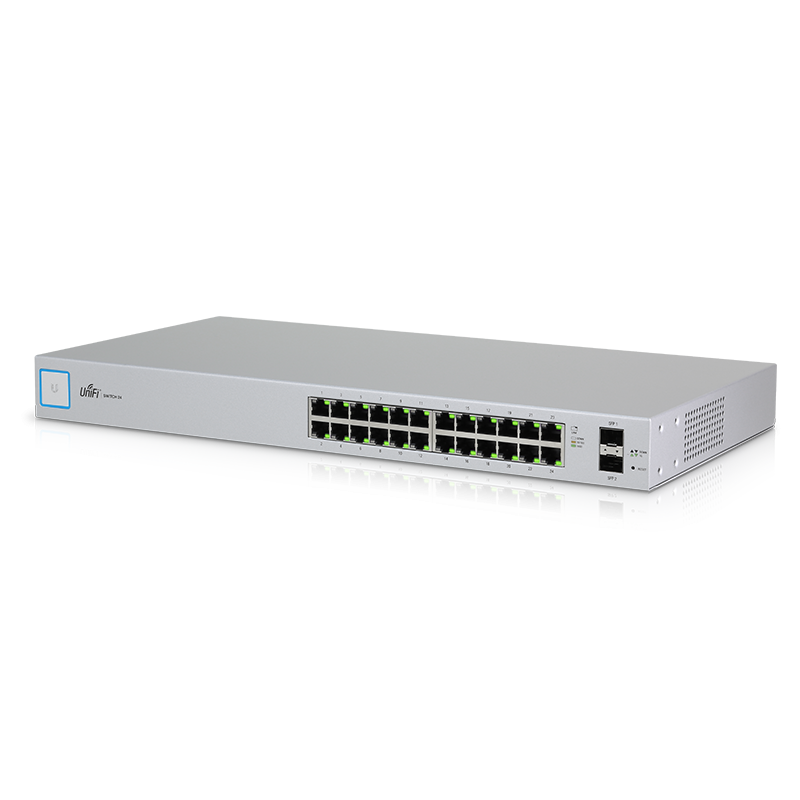

UBNT UniFi Switch US-24

US-24

(24) Gigabit RJ45 ports

(2) SFP ports

(1) Serial console port (reserved for future use)

Non-blocking throughput: 26 Gbps

Switching capacity: 52 Gbps

Forwarding rate: 38.69 Mpps

Rackmountable

Technické specifikace:

Dimensions 485.04 x 44.45 x 285.6 mm

Weight 3.7 kg

Total Non-Blocking Throughput 26 Gbps

Switching Capacity 52 Gbps

Forwarding Rate 38.69 Mpps

Power Method 100-240VAC/50-60 Hz, Universal Input or DC 16-25V

LEDs Per Port

Serial Console N/A

RJ45 Data Ports PoE, Speed/Link/Activity

SFP Data Ports Speed/Link/Activity

Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Management Interface (1) RJ45 Serial Port (Reserved for Future Use), Ethernet In/Out Band

Certifications CE, FCC, IC

Rackmount Yes, 1U High

ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Shock and Vibration ETSI300-019-1.4 Standard
