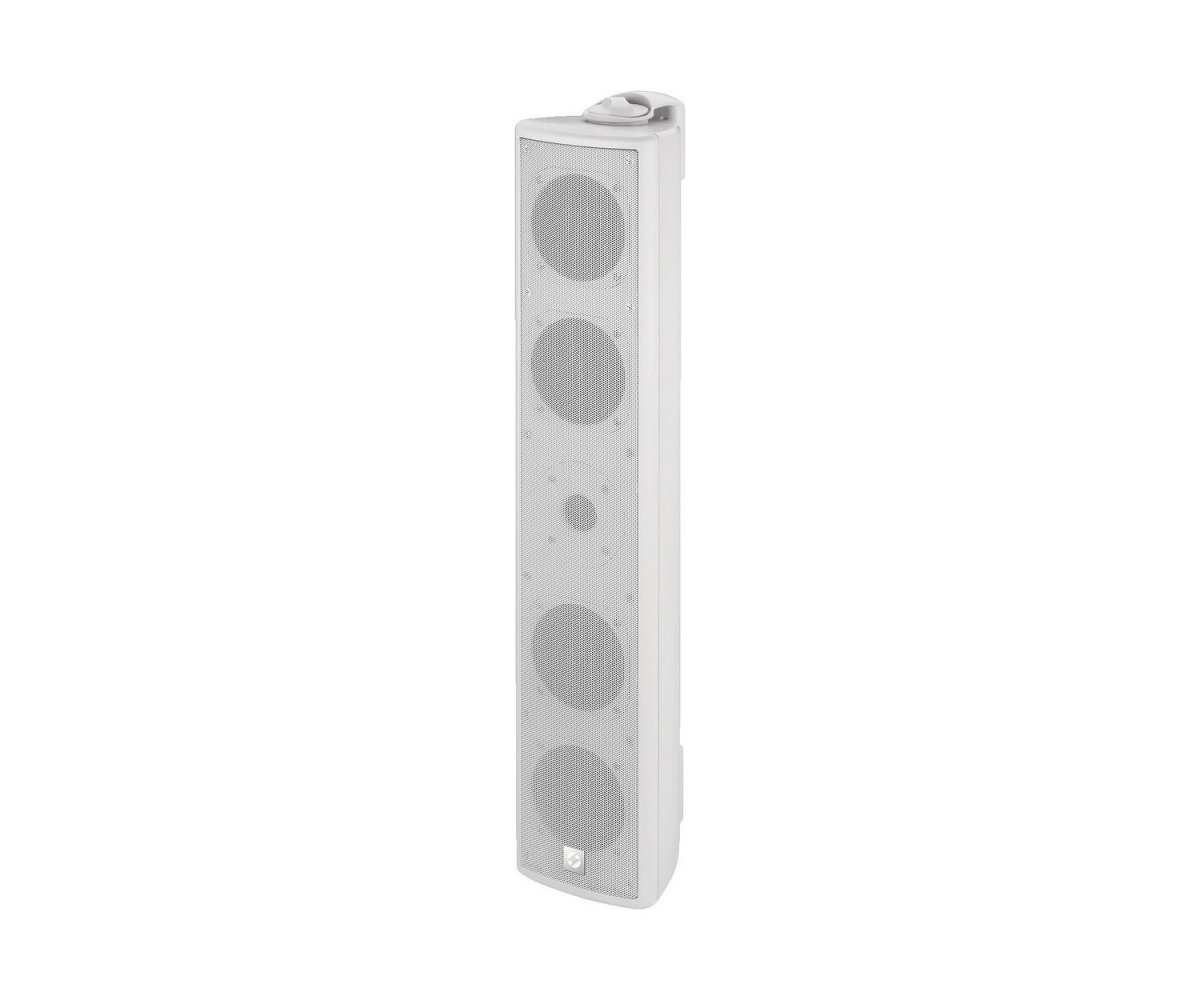

ETS-530TW/WS

PA column speakers

100 V line technique or 8 Ω operation

2-way version (with additional integrated tweeter for a clearly improved sound)

Integrated crossover network

6-step power selector switch with 8 Ω switching

2 x 6 mm threaded bushing

Plastic cabinet and protective metal grille in black (SW) or white (WS)

Supplied with mounting brackets

Connection via spring-loaded speaker terminalActive/passive passive

Transmission method 100 V

Total power rating 60 W

Power rating (RMS) 30/15/7.5/4/2 W (100 V) 30 W (8 Ω)

Impedance 8 Ω

Frequency range 85-20,000 Hz

System 2-way

Number of speakers 4+1

Sensitivity 89 dB/W/m

Housing material plastic

Colour white

Mounting device mounting brackets

Admiss. ambient temp. 0-40 °C

Dimensions 128 x 620 x 140 mm

Width 128 mm

Height 620 mm

Depth 140 mm

Weight 4.5 kg
